Site to Site Connection image

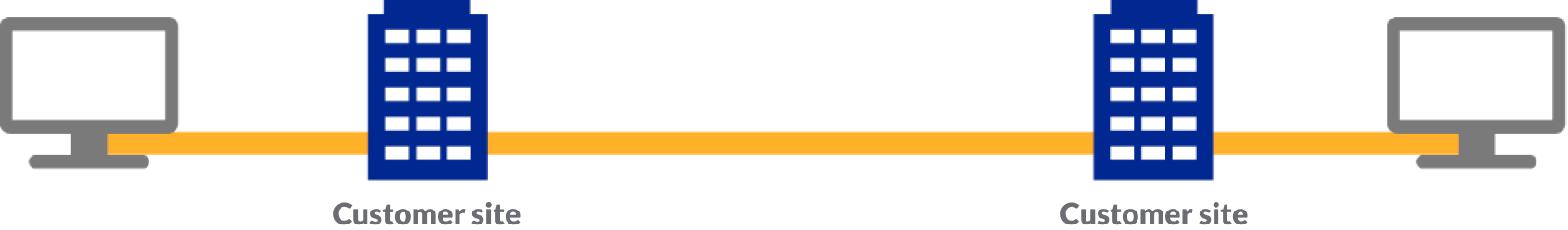

Site to Site Connection

Relation Ethernet

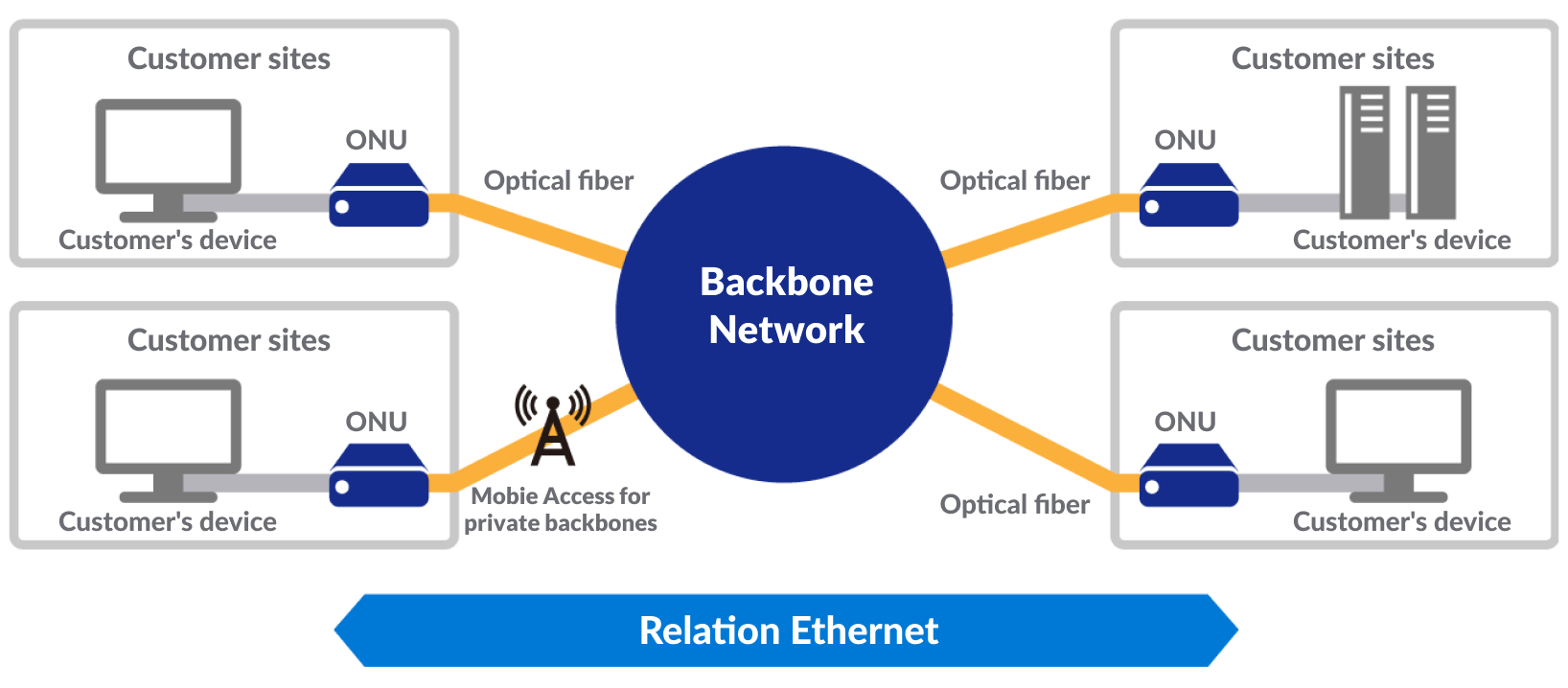

This is a wide area Ethernet service connecting multiple points by full mesh networking using Ethernet method. Best-effort type internet connection* from 10 Mbps to a maximum of 10 Gbps. You can select the optimum communication speed for each point according to your application and budget. We provide high-speed lines at a more reasonable price.
* Type-F / Type-Mobile only

Backbone Network

STRENGTHS

* Click (tap) each item for details.

  • Connecting multiple points using multipoint connection

    Connecting multiple points using multipoint connection

    You can set the communication speed for each base. Even if our relay network is congested, stable communication is possible because the communication speed band is secured within the relay network.

    ※ Access line type Type-F and access line type Type-Mobile are excluded.

  • Bandwidth guarantee for each access line

    Bandwidth guarantee for each access line

    Communication speed can be set per site. Even in the case of network congestion, we can offer stable communication as the bandwidth of the communication speed is secured within the relay network.

    * Access line style Type-Fand Access line style Type-Mobile are excluded.

  • Priority control
    (option)

    Priority control(option)

    Ethernet frames are forwarded based on the priority (ToS/CoS/TC) assigned by the customer's premises equipment.
    This will improve the stability of applications that require real-time performance such as VoIP and video conferencing as well as mission-critical operations.

    * Interconnection Carrier Line, Access Line Style Type-F and Access Line Style Type-Mobile are excluded.

  • Covers whole Japan region

    Covers whole Japan region

    Our interconnection with other telecommunication carriers will realize a nationwide connection between sites. Please contact our sales representative for further details.

  • Ensuring security

    Ensuring security

    VLAN technology allows us to logically configure an independent network per customer and also ensure security.

  • Corresponding multi-protocol

    Corresponding multi-protocol

    A wide range of protocols can be communicated over Ethernet. (TCP/IP, IPX, AppleTalk, FNA, SNA, etc.) There is also no restriction on the use of routing protocols (RIP, OSPF, etc.).

SPECIFICATION

Service specifications

<Access line type, Inhouse wiring type>
Communication speed (bps) 10M 10M
20M
30M
50M
100M
100M
200M
300M
500M
1G
1G
2G
3G
5G
10G
Interface 10BASE-T 100BASE-TX 1000BASE-T
1000BASE-SX
1000BASE-LX
10GBASE-SR
10GBASE-LR
Option Service Priority control function (4 levels)
Line aggregation function (bandwidth setting type / band sharing type)
Traffic report Enable to graph the amount of communication data and view it on a dedicated website
SLA Failure recovery time: 1 hour
Backbone network delay time: 30ms
Network utilization rate: 99.99%
(SLA is for relay network only.)
Tokyo, Kanagawa, Saitama, Chiba, Ibaraki, Gunma, Tochigi, Yamanashi, Nagano, Shizuoka, Aichi, Gifu, Mie, Osaka, Kyoto, Shiga, Hyogo, Kagawa and Okayama prefecture
(We may not provide our service in some areas even within the areas stated above. Please contact us for details.)
It can be used in all areas nationwide by interconnecting with the Ethernet service provided by the affiliated telecommunications carrier.
<Access line Type-F>
Circuit bandwidth Best-effort type, maximum 100M
Interface 10BASE-T
100BASE-TX
1000BASE-T
SLA Failure recovery time: 1 hour
Backbone Round Trip Delay:30ms
Network utilization rate: 99.99%
(SLA is for backbone networks only.)
Service available area Whole Japan
* Within the FLET'S line service area of ​​NTT East / West
<Access line Type-Mobile>
Circuit bandwidth Best-effort type
Interface 10BASE-T
100BASE-TX
1000BASE-T
Traffic report N/A
* Able to check your daily traffic on SIM's My Page
SLA Failure recovery time: 1 hour
Backbone Round Trip Delay:30ms
Network utilization rate: 99.99%
(SLA is for backbone networks only.)
Service available area Whole Japan
* Within the FLET'S line service area of ​​NTT East / West

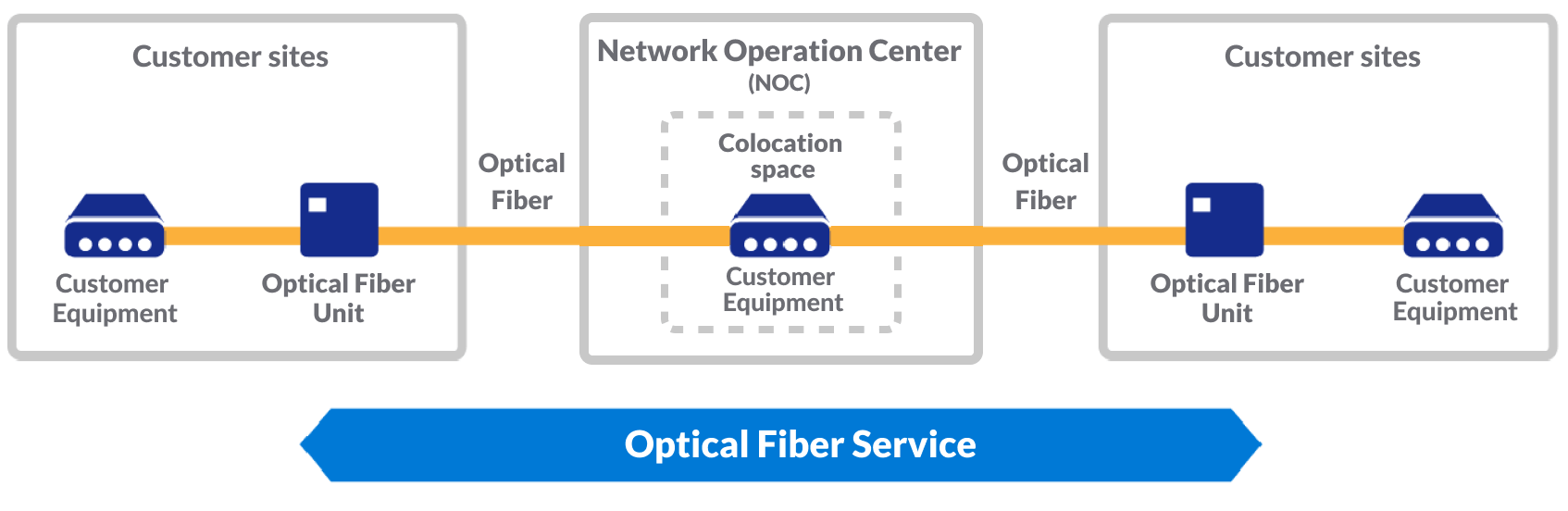

Four types of access products

We have four types of access products, "Access line type", "Inhouse wiring type", "Access line Type-F", and "Access line Type-Mobile" according to the form of access section to the customer base.

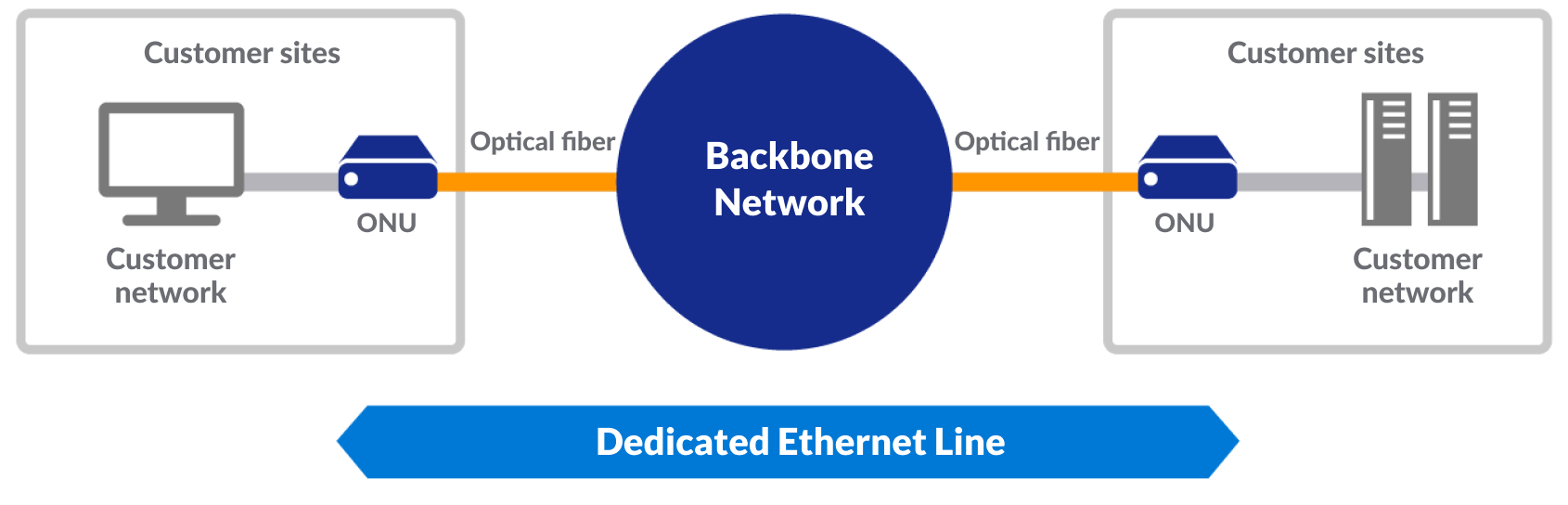

Access line type For the access line type, a dedicated optical fiber is drawn from our accommodation station to the customer's site, and a line termination device (Optical Network Unit) will be installed.
Inhouse wiring type Inhouse wiring type will connect our company's facility and the customer's facility at the data center where our network equipment is already installed.
Access line Type-F Access line Type-F enables to connect the section from our accommodation station to the customer site with a layer 2 VPN using NTT FLET'S line and a VPN router.
Access line Type-Mobile Access line Type-Mobile enables to connect the section from our accommodation station to the customer site with our closed network mobile access SIM and VPN router with a layer 2 VPN.

Precautions

  • * Even within the service area, you may have to wait or may not be able to be provided with the service depending on the equipment status.
  • * The access line type is a service based on the assumption that NTT East / West and other line operator's optical fibers are used from our accommodation station to the customer site. This explains that you may have to wait or not be able to apply for this service depending on the installation and provision status of the optical fiber.
  • * The access line Type-F is a service based on the assumption that NTT East / West FLET's line are used from our accommodation station to the customer site. This explains that you may have to wait or not be able to apply for this service depending on the installation and provision status of the FLET's line.
  • * For Access line Type-F, you need to pay an additional fee for NTT East / West FLET's line. If you wish to be covered with a 24 hours a day, 365 days a year of FLET's line repair service, you will need to pay for the 24-hour on-site repair option additionally.
  • * Please be informed that our service may be temporarily suspended due to construction work such as expanding our equipment ability.
  • * The minimum usage period of this service is one year.
  • * The access line Type-Mobile is a service based on the assumption that our closed network mobile access SIM is used from our accommodation station to the customer site, so you will need to pay for this SIM additionally.
SLA

Relation Ethernet applies the following SLA (Service Level Agreement) as for customer's satisfaction. When this guarantee standard value cannot be maintained in time of need, we will refund the fee according to the specified rate.

Failure recovery time

In case a failure occurs in the line you are using, we guarantee that it will be recovered within one hour from the time when we have been notified the failure.
If the failure continues for more than 1 hour and the reason is on our side, we will refund the fee according to the time required to recover from the failure.

Failure recovery time Return rate
More than 1 hour, less than 2 hours 10%
More than 2 hours, less than 4 hours 20%
More than 4 hours, less than 6 hours 30%
More than 6 hours, less than 8 hours 40%
More than 8 hours, less than 72 hours 50%
More than 72 hours 100%
  • * The definition for failure shall be stated as, a failure occurs in the line and you are not able to communication at all.
  • * The failure recovery time shall be defined as, the total time required from the point when we have been noticed the failure to when the line recovers and the customer can actually use it without a problem.
  • * SLA shall not be applied to service suspensions due to our planned work based on prior notice.

Backbone delay time

We guarantee that the average monthly backbone network delay time (the time required for an Ethernet frame to travel back and forth within the Ethernet housing network) is 30ms or less for our relation Ethernet.
If the backbone network delay time exceeds 30ms, 10% of the monthly usage fee will be refunded.

Backbone delay time Return rate
When the monthly average value exceeds 30ms 10%
  • * The standard value of the backbone network delay time shall be the monthly average of the round-trip delay values between the equipment of multiple service stations starting from Tokyo.

Actual delay time in the backbone network (Japanese)

Network utilization rate

We guarantee that the operating rate of our relation Ethernet backbone network is 99.99% or higher.
If the occupancy rate becomes less than 99.99%, we will refund the fee according to the occupancy rate.

Network utilization rate Return rate
Less than 99.99%, More than 99.8% 1%
Less than 99.9%, More than 98.0% 3%
Less than 98.0%, More than 95.0% 10%
Less than 95.0%, More than 90.0% 20%
Less than 90.0% 100%
  • * SLA shall not be applied to service suspensions due to our planned work based on prior notice.

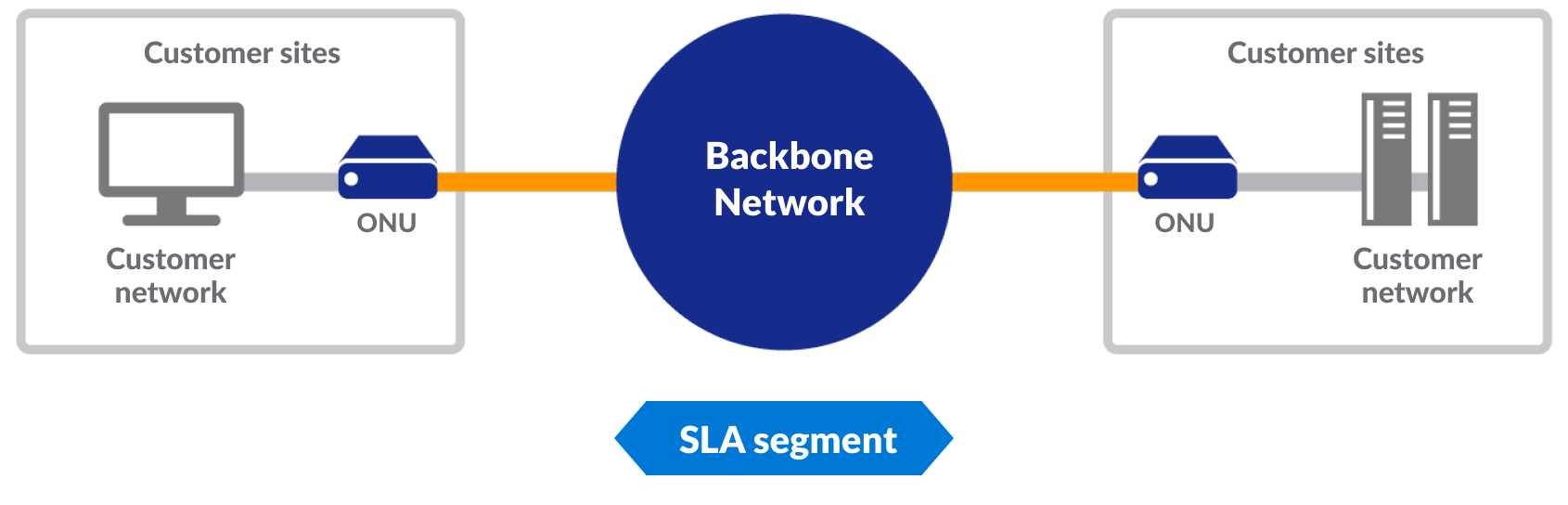

SLA target section

DSLA target section

Refundable fee

Monthly fee for the case when there was SLA violation.

Precautions

  • * No special procedures such as application procedures or additional charges are required to have the monthly fee applied for the case when there was SLA violation.
  • * Monthly fee for the case when there was SLA violation will be the upper limit of the monthly total of refunds (failure recovery time, delay time in the network, Network utilization rate) based on SLA. Daily pro-rata calculation will be applied if you apply or cancel in the middle of the month.
OPTIONS

QoS Function

QoS function is to preferentially transfer Ethernet frames with high importance based on the priority set at the customer's device side in advance.

Normally, application data is sent in the order from the one that reaches the network device. Therefore, when traffic is concentrated, a "waiting time" occurs before being sent, which may cause delays, fluctuations, and even discards.

Using the QoS function will allow specific application data such as VoIP to be transferred preferentially, and the impact on the application due to delay, fluctuation, and discard can be reduced.
In addition, since it will lead to efficient use of the customer's contracted bandwidth, you will find it cost effective compared to the case of preparing multiple lines or introducing a bandwidth control device.

In Relation Ethernet, we will perform four levels of priority control based on the priority bit value set in the customer's device. (* Refer to the table below).

Priority bit Priority ranking
7 1st
6
5 2nd
4
3 3rd
0
2 4th
1
Precautions
  • * This service is only effective when used together with Relation Ethernet ("Access line type", "Inhouse wiring type"), and not with Access line Type-F, Access line Type-Mobile and interconnecting carriers.
  • * This service could not be used together with Line aggregation function.
  • * Please be informed that our service may be temporarily suspended due to construction work such as expanding our equipment ability.
  • * This service does not have a minimum requirement for the usage period.

VLAN Option

VLAN is to combine multiple networks to one access line.

Security will be ensured by combining networks with different usage such as backbone / information networks, corporate LANs, and connections to cloud services into a single line, then configuring a logically independent network with VLANs.

You will be able to reduce costs and use the bandwidth of the access line efficiently compared to using multiple lines.
In addition, you will have an even flexible choice when setting up new networks of a different type after introducing the Line aggregation function.

Precautions
  • * This service is only effective when used together with Relation Ethernet ("Access line type", "Inhouse wiring type"), and not with Access line Type-F, Access line Type-Mobile and interconnecting carriers.
  • * This service could not be used together with QoS function.
  • * Please be informed that our service may be temporarily suspended due to construction work such as expanding our equipment ability.
  • * The minimum usage period of this service is one year.

ALSO

We provide many services using
the above infrastructure.

Video transmission service
This video transmission service is a high quality and stable service that transmits various video signals in real time, such as event relay video of sports, concerts, etc., and monitoring video of roads and rivers, etc., by connecting the bases with optical fibers.
Mobile access for
private backbone
This is a service that allows you to access the cloud and customer sites via a closed network from mobile terminals such as tablets and PCs using SIM.
CVR(SD-WAN) Service
We will easily realize a visualized and centralized cloud-based network by providing low-cost rental network equipment to customer sites and automatically connecting to corresponding lines.
Multi-point Ethernet
This is a wide-area Ethernet service that uses Ethernet to connect multiple sites in a full mesh, creating a logically independent network for each customer.
SONET / SDH
Dedicated line
This is a highly reliable leased line service that connects bases via optical fiber and fully guarantees the communication bandwidth between them. SONET and SDH are used for the interface.
